ATHENA Series Illuminates High-End Air Dome Pavilion
A newly built air dome sports facility approached us with a clear requirement: a lighting solution that would be lightweight, highly efficient, and environmentally friendly, while also ensuring stable operation in a high-humidity environment. Our Athena Series was the perfect match.

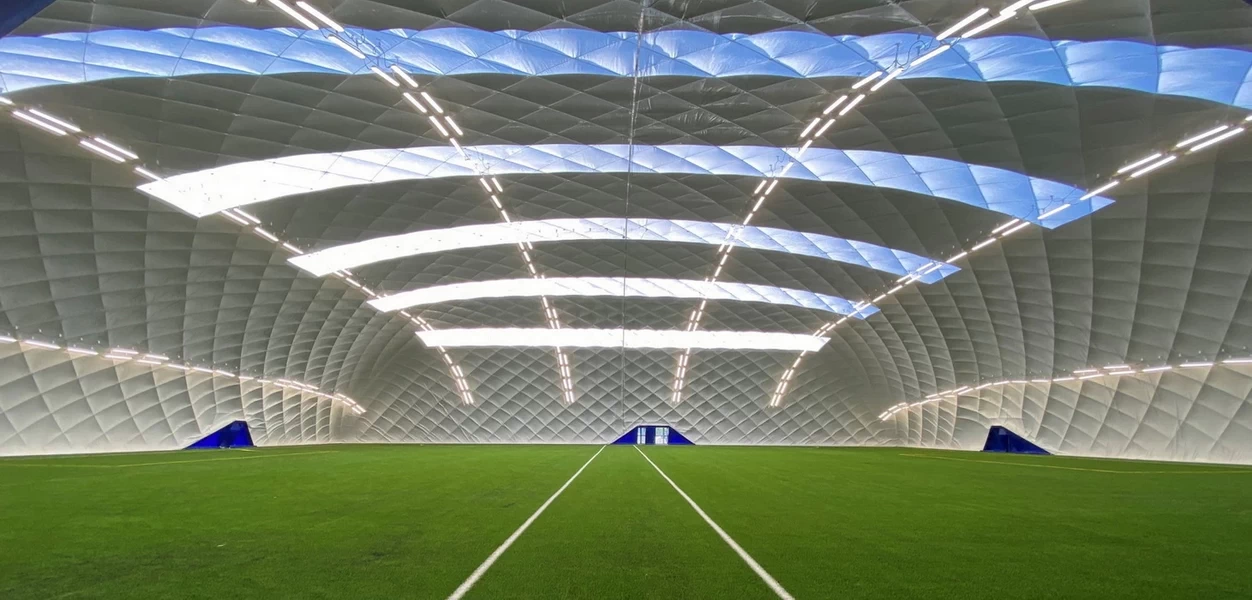

What is an Air Dome?
An Air Dome, also known as an air-supported structure, is a modern, large-span building that uses high-pressure air to support its form. Made of durable, high-strength membrane materials like PVC or PVDF, it requires no internal columns or steel framework. This makes it ideal for covering large sports areas quickly and efficiently.
Spans of 20 to 100+ meters with zero internal obstructions. Perfect for basketball courts, soccer fields, tennis courts, swimming pools, and multi-sport facilities.
Scenario lighting difficulty
Air domes are usually closed and airtight structures with high humidity and large temperature fluctuations. Ordinary lights are easily damaged by high humidity, temperature difference, or condensation, resulting in frequent failures and high maintenance costs.
Due to the special structure of the air dome hall and the non-fixed roof height, ordinary lights are complicated to install and difficult to maintain. Lights are often exposed to difficult-to-access places, resulting in a long maintenance cycle.
Due to the reflective light characteristics of the air dome hall structure, ordinary lights are prone to light spots or shadows, and cannot evenly cover the entire venue, affecting the visual experience of the game or event.
High light weight requirements : The roof structure of the air dome hall is usually thin and has limited load-bearing capacity. The excessive weight of traditional lights may cause additional pressure on the roof, increasing safety hazards and structural burdens.
- Structural limitations : Air dome has extremely high requirements on the weight and installation method of lighting equipment.
- Light efficiency requirements : Use uniform and bright light sources.
- Stable operation : Continuous performance test in high humidity and low temperature environment.
Abuslighting series lamps successfully solve these problems with their excellent performance.

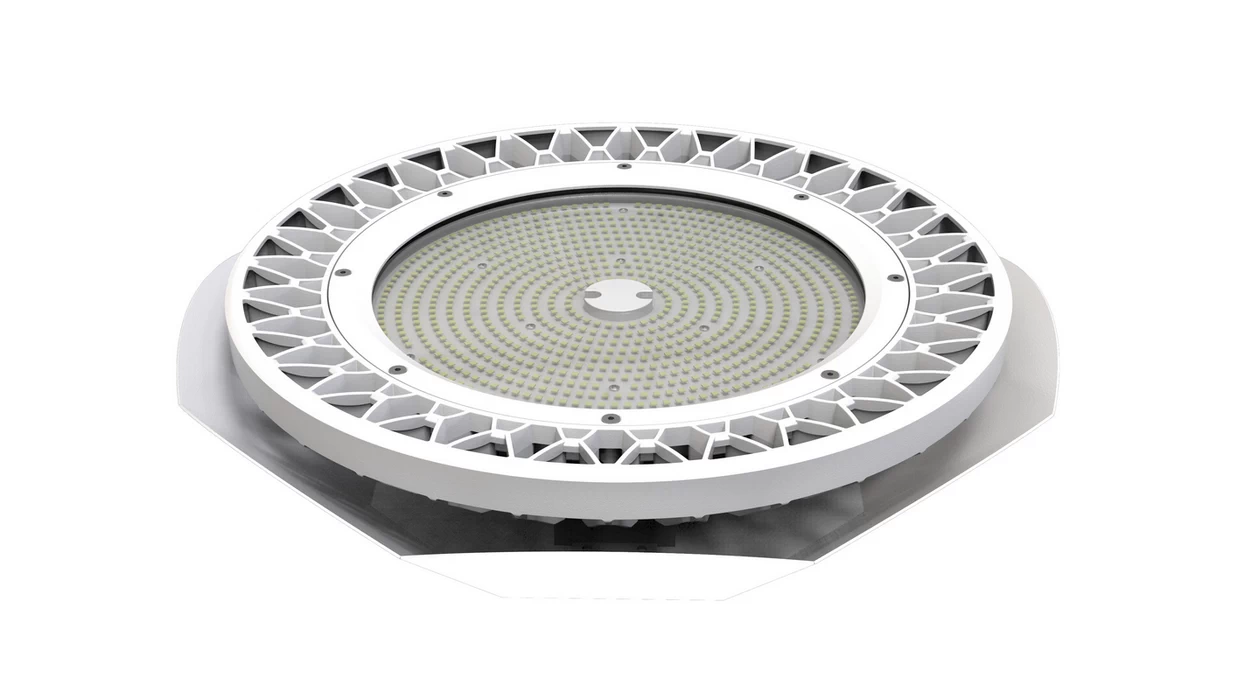

The perfect solution - "Athena"
1. Lightweight Design for Structural Safety
We used Athena lights with die-cast aluminum housing, drastically reducing fixture weight. This minimized structural stress on the air dome, ensuring full compliance with its load-bearing requirements. Installation was fast and safe—even at higher elevations.
2. Ultra-Efficient and Eco-Friendly
With a luminous efficiency of 160LM/W, Athena fixtures achieved more than 50% energy savings compared to traditional lights. All components are 100% recyclable, aligning with the air dome’s green building goals.
3. Zonal Power Configuration
We strategically deployed different wattages based on area usage:
- 80W–150W lights in corridors and entrance zones for soft, glare-free lighting.
- 200W–400W high-power fixtures in the main court area for wide, bright coverage, meeting the visual demands of both athletes and spectators.
4. Reliable Performance in Humid Conditions
The IP66 waterproof and dustproof ratings, Athena fixtures resist corrosion caused by condensation—ideal for the closed and humid environment of an air dome. This reduced maintenance frequency significantly.
5. Customized Layout & Smart Control Integration
We provided a tailored lighting design based on dome height and floor area. Additionally, Athena lights were integrated with a smart lighting control system, enabling zoned lighting and scene presets, optimizing energy use during events and training sessions.

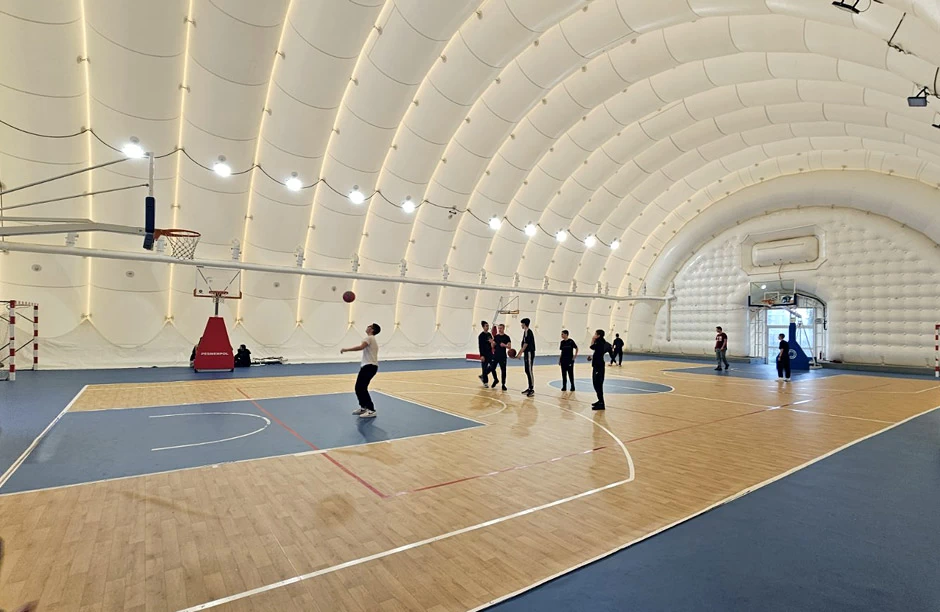

Result Highlights
- Load-bearing reduced by 30% compared to conventional fixtures
- Energy savings of over 50%
- Zero lighting failures in 12 months of continuous operation
- Positive user experience from players and facility managers
Of course, the Athena series isn’t our only solution for air domes. Depending on the size and structure of your facility, we can recommend different lighting series and customized layouts. Just share your vision with us — and we’ll take care of the rest.
