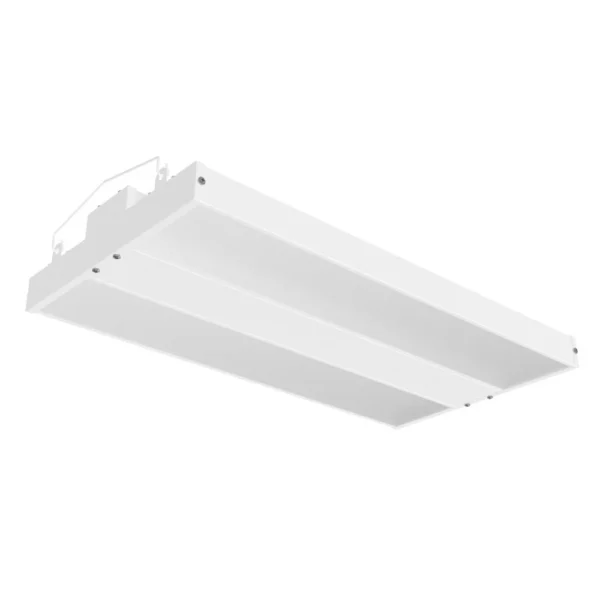

This luminaire is specially designed for high-demand LED sports lighting in indoor arenas. It features dual-beam zones that provide a wider coverage area with exceptional uniformity. The optimized light distribution helps reduce glare significantly, creating a more comfortable visual environment for both players and spectators. With outstanding performance in badminton courts, tennis halls, and similar indoor venues, it’s the perfect choice for precise, glare-free lighting that meets professional standards.
📣 ABUSLIGHTING handles orders worldwide — feel free to reach out to us anytime.
📣 Due to product variations, some specifications may not apply to every configuration. Contact us for more details.
Soft light upgrade : Compared with Ocean II, the luminous area is increased by 20%, which is softer and brighter, perfectly solving the brightness requirements and reducing glare.
Industry first : Backlight uniformity (cd/m²) is introduced into lamps for the first time. Hermes uniformity is ≥80%, far exceeding the 60% of ordinary lamps.

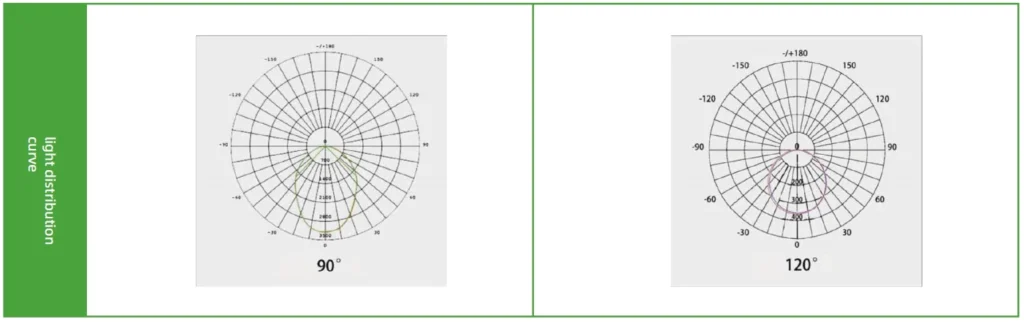

Precise control : 90°adjustable beam angle, flexible control of light direction, perfectly solving the problem of uneven light.
Perfect lighting : The unique structural design ensures no shadows and evenly distributed brightness, providing you with a seamless and perfect lighting experience.
Optical pioneer : Precision prism board technology accurately controls light, and each beam of light is carefully crafted to present a perfect lighting experience.
| Wattage | Expected Life | Color Render ingIndex (CRI) | Operating Temp | Relative Humidity | Power Factor | Input Volt | Frequency |
|---|---|---|---|---|---|---|---|
| 80W，100W，120W，150W，200W，240W | 50,000 hrs. | >80 | -30℃ – +45℃ |
0-90% RH | ≥95% | 220-240V AC | 50/60 Hz |
| LED Chips | DIMMING | LED Efficiency | WARRANTY | Housing | Finish | Salt Spray Test | diffuser plate |
| OSRAM | 0-10V Optional | ≥140 lm/w | 5 year | High strength sheet metal | Protectiv e UV Stabilized Powdercoat | 4000 Hour Salt Spray Tested to ASTM B117 | PMMA |
1. Introduction 2. What’s the Problem with Indoor Badminton Hall Lighting? 2.1 Poor Lighting Quality 2.2 Low Lux Levels 2.3 Short Lamp Lifespan and High Replacement Costs 2.4 Glare and Eye Strain 2.5 High Energy Consumption 3. How Much Space
In stadium lighting, applying LED lamps is an important factor in ensuring the game’s quality, viewing, and safety. Abuslighting LED lamps ensure uniform, bright, and comfortable lighting throughout the competition venue through precision design and high-quality optical components, providing the
LED lighting plays a key role in sports field lighting, and its application must comply with a series of strict lighting standards to ensure that the lighting effect of the field can meet the needs of competition or training. These
